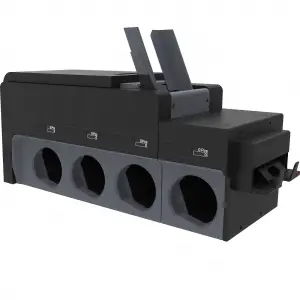

PA 9500 Five + Multi Pocket Note Processing System/Sorter

PA9500, another revolutionary product and cutting edge model from MA, is so far the most powerful fitness sorter in the MA portfolio, featuring expandable modular stacker design on top of enhanced and reliable authentication & fitness-sorting ability.

NC9500 stops counterfeits by using the most advanced counterfeit detection technology in the industry. With the expandable stacker design, user is able to process banknotes in the shortest time.

Easy modes switching to fulfill all kind of cash handling process, it reduces workload with high speed and accuracy. Supporting most of the currencies worldwide, and various possibilities for connectivity, satisfying the demand for large banknote handling environment.
CAN BE INTEGRATED WITH GAMING CLEARANCE AND PROCESS/CAPTURE TITO

Expandable From 3 Up to 12 pockets & 1 Reject
Individual Stacker Configuration
Built-in Dust Cleaning System
Efficient – Capable of sorting mixed banknote by denomination, fitness, orientation with fewer steps and shorter overall processing cycle
Multi Currency – Capable of recognizing multi currency based on character of each banknote.
Fitness – Sorting banknote by fitness or quality with its capability to detect folded corners, holes, soil, tears and tape as unfit notes.
Durable and Reliable – Designed for heavy duty usage and long lasting.
Touch Panel Display
Connectivity – Can be connected to printer or system through LAN; operator can print out serial numbers or all vital operating results of the processed banknotes.
TITO capability

SPECIFICATIONS

Feeding System: Roller friction system
Counterfeit Detection: Dual CIS, Infrared reflection and transmission, Magnetic, Thickness Sensor, Ultraviolet.
Counting Modes

Count, Mix, Sort, Face, Orientation, Fitness, Issue, TITO (Optional)
Counting Speed:
900 Notes per minute
Hopper Capacity: 1000 notes (circulated notes)
Pocket Capacity: Stackers Capacity 200 notes (circulated notes) / Reject Pocket Capacity 100 notes (circulated notes)
Countable Note Size: 60 X 85 X 0.08mm ~ 100 X 190 X 0.12mm
7″ Touch Screen
Dimension

Approx. 700 x 350 x 370 mm (Main Unit)
Approx. 180 x 350 x 270 mm (Extra Stacker)

Features

  • Fitness Sorting – Tape, Dog-ear, Soil, Tear, Hole, Graffiti, Stamp etc.
  • Multiple Currencies Capability – can be configured with up to 10 currencies
  • Various Operation Modes – Mixed / Single / Face / Orient / Count / (Issue / SRL / P-OCR)
  • Various Count Modes – Mixed / Single / Count / Face / Orient / Fitness (Option: Issue / Serial No. Recognition & Comparison)
  • New Type of Stacker – Lift Type
  • Enhanced Sensors – CIS (Option: 2 CIS) / Magnetic/ UV / IR Mechanical Roller Tape Detector
  • User Friendly – Resistive Touch Screen Hard Key, Detachable 5″TFT Color LCD, Multi Language support
  • Expandable From 3 Up to 12 pockets & 1 Reject
